Quick answer. Yes, shrink bands can work on pump and spray bottles, but the package geometry matters more than the dispenser name. A useful band has to pass over the widest part of the assembled pump or sprayer, then recover tightly enough to bridge the removable closure assembly and a fixed part of the bottle. If the pump head is much wider than the bottle neck, the starting tube may need to be surprisingly large, which can create excess film, wrinkles or an awkward tear path.

Do not confuse three different jobs. A shrink band can provide visible evidence that the package has been opened. A pump lock, transit clip or overcap can help prevent accidental actuation. The pump-to-bottle sealing system controls leakage. One component may contribute to more than one job, but you should validate each function separately.

For a simple lotion or treatment pump, a custom-height perforated neck band can be a practical small-batch solution. For large trigger sprayers or very asymmetric heads, a wider custom band, an integrated full-body sleeve, a molded tamper-evident closure, or a separate transit-control feature may be more robust.

Why Pump Bottles Are Harder Than Ordinary Screw Caps

A normal screw cap is close to rotationally symmetric: its maximum outside diameter is usually not dramatically larger than the bottle neck below it. Pump and spray closures are different. The actuator may project to one side, a trigger can extend far forward, an overcap can add height, and the dispenser body may create large gaps between the widest head and the narrow neck.

That geometry changes both band width and band height. The unshrunk tube must clear the widest feature during installation. After heating, the same film must recover over a much smaller neck area without folding excessively or pulling the perforation into a high-stress position. Packaging equipment built specifically for spray bottles reflects this problem: current neck-banding equipment is designed around unusually wide lay-flat ranges and large gaps between the trigger and the back of the spray head.

This is also why supplier guidance appears contradictory. Some packaging catalogs warn that certain lotion pumps are not compatible with their stock shrink bands, while other converters explicitly make custom bands for lotion pumps. Both can be true: a stock band may be unsuitable for one pump geometry even though a custom band works on another.

Start With the Exact Pump Configuration

Do not size the band from a 24-410, 28-410 or similar neck-finish code alone. That code helps match the pump closure to the bottle thread, but the shrink band has to pass over the outside of the complete dispenser. Two pumps that both fit a 24-410 bottle can have different actuator widths, collar diameters, lock mechanisms and overall heights.

Build the real assembly first: bottle, pump or sprayer, overcap if used, dip tube, collar and any transit clip or lock. Then decide which parts the band is intended to cover. A band that is approved on one pump SKU should be rechecked if the actuator, collar, overcap or supplier changes.

What Should You Measure?

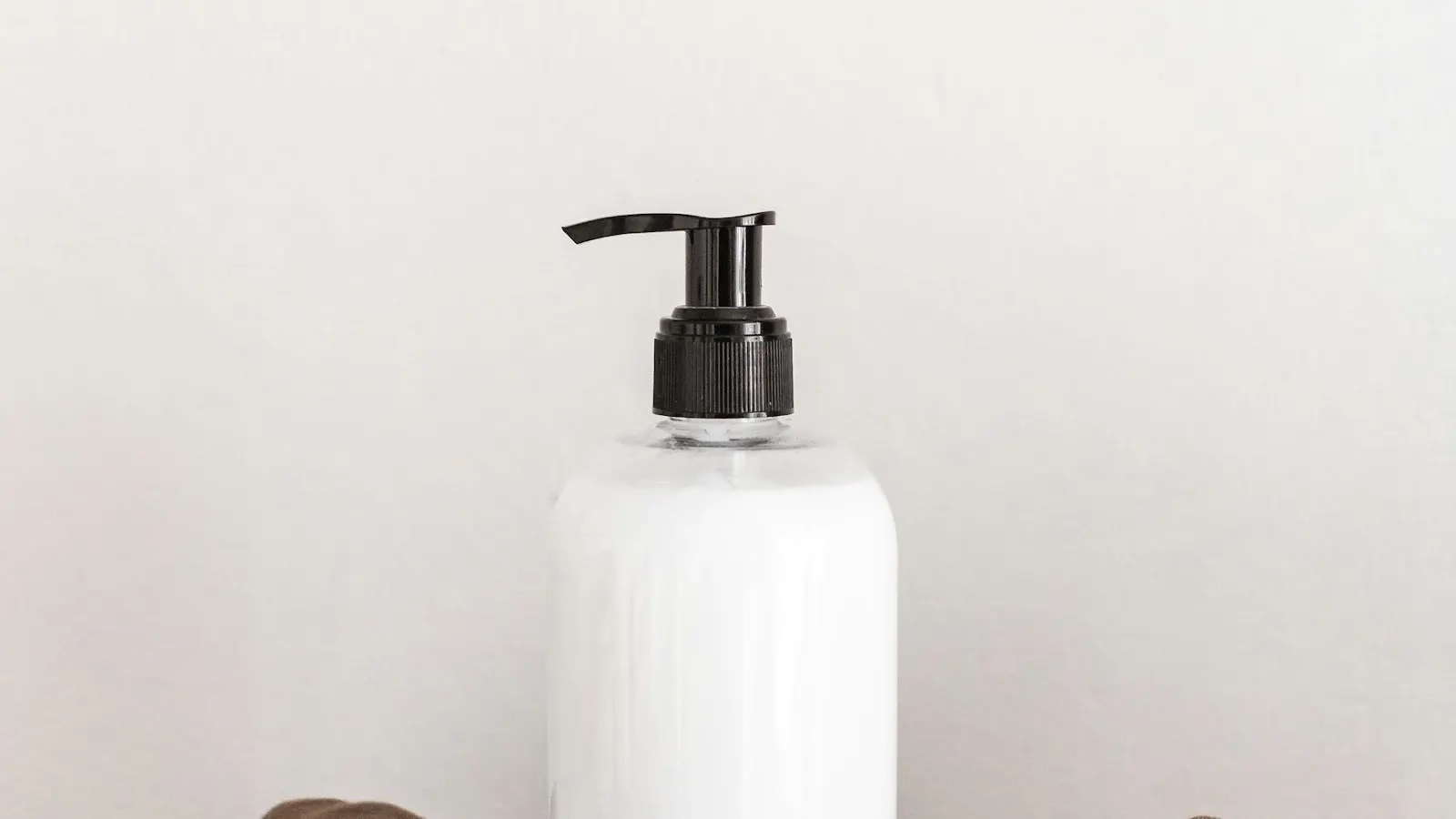

For a round lotion or treatment pump, start by measuring the maximum outside dimension that the unshrunk tube must pass over. If the actuator is roughly circular, maximum outside diameter can be a useful starting measure. If the head is strongly asymmetric, such as a trigger sprayer, use the actual maximum perimeter/clearance path rather than pretending the package is a perfect circle.

The same rule from the shrink band size guide still applies: lay-flat width is the flattened tube dimension, not the pump diameter. But on an asymmetric dispenser, a simple πD/2 estimate becomes less reliable because the cross-section is not circular. Supplier fit data or a physical sample becomes more important.

Then measure height separately. The band must extend far enough to bridge the removable pump/closure assembly and a fixed bottle feature below it. Do not choose extra height merely to make the band look more substantial. A very tall band can run into bottle shoulders, labels, finger-clearance areas or moving parts and can create unnecessary shrink stress.

Where Should the Band Sit on a Lotion or Treatment Pump?

The most practical target is usually the rigid pump collar/closure plus a fixed section of bottle neck. The band should make it impossible to remove or rotate the closure in the normal opening sequence without visibly damaging the film.

Whether the band should cover the actuator itself depends on the package. Covering the full actuator can make the unopened pack visually obvious and may add some resistance to accidental pressing, but it also increases required band width and height. If the pump has a clean overcap, it may be more efficient to band the overcap and neck rather than shrink directly over an exposed actuator.

Keep flexible or functional areas in mind. A shrink band should not distort a thin plastic actuator, interfere with a twist-lock mechanism, block a nozzle opening that must remain protected by another component, or trap a moving part so tightly that the pump is damaged during removal.

Trigger Sprayers Need a Different Fit Strategy

Trigger sprayers are one of the most demanding shapes because the head is wide, long and asymmetric. A short neck band still has to clear the front trigger and rear body before it can reach the neck. That can require a much larger lay-flat than the bottle diameter would suggest.

A large tube then has to recover across the narrower neck. If the film grade, heat distribution or geometry is wrong, the excess material can collect as folds or wrinkles. This does not mean trigger sprayers cannot be banded; commercial neck-banding systems are specifically built for them. It means the package should be treated as a dedicated configuration rather than an ordinary cap with a bigger number.

For a trigger bottle, confirm three things on samples: the band can be installed without stretching or snagging, it shrinks without severe folds around the head-to-neck transition, and opening the closure or using the trigger after band removal leaves the intended visible evidence without damaging the sprayer.

Tamper Evidence Is Not the Same as Preventing Accidental Pumping

Real users often worry about pump bottles arriving with the head raised, unlocked or apparently used. Consumer discussions also show a separate shipping problem: pumps can rotate, unlock or actuate under handling and vibration.

A shrink band may physically restrain some pump heads, but do not assume that every band is a transit lock. If accidental dispensing is the primary risk, evaluate a down-lock or up-lock pump, removable transit clip, protective overcap, molded locking ring, secondary carton restraint or another packaging feature designed for that job.

Treat the band as a tamper indicator first. Then test whether it also provides acceptable actuator restraint on the actual package. If it does, that is a validated package-specific benefit — not a universal property of shrink bands.

A Shrink Band Is Not the Pump’s Leak Seal

Leak performance belongs to the pump, bottle neck, gasket/liner where applicable, closure torque, formulation and distribution environment. ASTM maintains a dedicated test method for mechanical pump-dispenser package leakage that evaluates pump sealing and the pump-to-container closure interface, including a version of the procedure with vibration.

That distinction matters because a band can hide residue around the neck while the real seal is failing underneath. If product appears under the band, solve the pump or closure leak first. Do not add more heat or a tighter band in an attempt to make the film function as a liquid seal.

For e-commerce or long-distance shipping, qualify the complete filled package. The shrink band can be part of that system, but it should not replace leak testing, lock/clip validation or package-distribution testing.

What About Fine-Mist Sprayers and Overcaps?

Fine-mist sprayers often have a smaller, more symmetric head than trigger sprayers, so a neck band may be easier to fit. An overcap can simplify the geometry further by giving the band a cleaner outer surface and protecting the actuator from accidental pressing or contamination.

If an overcap is used, make sure the band still bridges to a fixed bottle area. A band that shrinks only around a removable overcap can come away with that overcap and provide weak evidence of first opening.

Also check heat sensitivity. Thin overcaps, decorative metalized shells and some pump components may react differently from the film. The package is approved only if both the band and dispenser survive the heat process without distortion.

When a Short Neck Band Is the Wrong Format

Package condition	Format to evaluate	Why
Compact lotion/treatment pump with clear neck below collar	Custom-height perforated neck band	Simple tamper bridge with manageable geometry
Fine-mist sprayer with stable overcap	Band over overcap + fixed neck	Cleaner surface and lower accidental-actuation risk
Trigger head much wider than neck	Custom wide band or dedicated banding setup	Needs large installation clearance and controlled recovery
Straight body / weak neck anchor	Full-body sleeve or another tamper-evident system	Short band may slide off without obvious damage
Primary problem is shipping leakage	Pump/closure redesign + leak/transit testing	Shrink film is not the primary liquid seal
Primary problem is accidental actuation	Locking pump, clip, overcap or secondary restraint	Tamper indication and transit restraint are different functions

Pump-Bottle Fit & Approval Checklist

Approval field	What to confirm	Why it matters
Bottle & neck	Exact bottle SKU and neck finish	Prevents assuming nominal finish defines outside geometry
Pump / sprayer	Exact supplier SKU, actuator shape, collar, lock and overcap	Defines the real maximum installation envelope
Maximum clearance	Widest/perimeter path the unshrunk tube must pass	Controls starting band width
Band height	Coverage from removable closure to fixed neck/body	Creates the tamper bridge
Perforation	Final position and tear direction after shrinking	Controls consumer removal and visible damage
Heat process	Tool, motion/tunnel condition and package deformation check	Pump plastics may be heat-sensitive
Transit control	Lock, clip, overcap or restraint if needed	Separates accidental actuation from tamper evidence
Leak validation	Filled-package pump/neck seal performance	Confirms the film is not masking a closure problem

How to Validate the Package Before Production

Start with a small sample order or custom sample rather than a production case. Assemble the exact bottle and pump, seat the closure using the intended process, install the band, and shrink several units consecutively.

After cooling, inspect the film around the full circumference. Look for loose pockets behind the actuator, diagonal folds, splits near the perforation, film pulled into the pump threads, overcap distortion or a band that can slide upward intact.

Then open the packages normally. Confirm that first opening causes obvious, irreversible damage and that the consumer can remove the band without a knife. If the pump is supposed to remain locked during shipping, test that function separately before and after banding.

Finally, run transport-equivalent checks appropriate to the product: orientation, vibration, pressure/altitude exposure where relevant, temperature and secondary packaging. A pack that looks perfect on the bench can still unlock, leak or deform in distribution. If a defect repeats around a pump feature, the wrinkles, splits and uneven-shrink troubleshooting guide covers the diagnostic path.

Current Alibaba Sourcing Options

The three options below are sourcing candidates organized by package-development role. Marketplace terms change — recheck the live listing, MOQ, material, dimensions, customization and CPS destination before ordering.

How to use these options: start with the low-MOQ neck-band trial to prove the band can clear the real actuator, use the custom size/material route once a stock band cannot handle the pump-head width, height or heat constraints, and choose the integrated full-body sleeve only when a short band is a weak anchor or the package needs body graphics. Confirm the live listing and MOQ before ordering.

Frequently Asked Questions

Can I put a shrink band over a lotion pump?

Yes, on some pump/bottle combinations. Measure the actual assembled pump rather than relying on the neck finish. The band must clear the widest actuator or overcap and still shrink tightly enough to bridge the removable closure and a fixed bottle area.

Can a shrink band stop a pump from leaking in transit?

Not reliably as the primary leak-control method. Pump leakage depends on the pump-to-neck seal, formulation, closure application and distribution conditions. Use the band for tamper evidence and validate leakage separately.

Should the band cover the pump head?

Sometimes. Full actuator coverage can create a very obvious unopened appearance, but it increases required width and height. A band around a protective overcap or rigid pump collar may be more efficient when the package design allows it.

What if the pump keeps popping up during shipping?

Treat that as a transit-control problem. Consider a lock-up/down design, removable clip, overcap or secondary restraint and validate the filled package under realistic transport conditions. Do not assume the shrink band alone will prevent actuation.

Are trigger sprayers too large for shrink bands?

No, but they require dedicated sizing. Commercial equipment exists specifically to apply bands over large trigger/spray heads. The wide installation envelope and asymmetric shape make sample validation much more important than on an ordinary screw cap.

References

1. Marsh, K., & Bugusu, B. (2007). Food Packaging—Roles, Materials, and Environmental Issues. Journal of Food Science, 72(3), R39-R55. DOI: 10.1111/j.1750-3841.2007.00301.x
2. Theobald, N. (2012). Tamper-evident food and beverage packaging. In Emerging Food Packaging Technologies, 220-235. DOI: 10.1533/9780857095664.2.220
3. Mumani, A., & Stone, R. (2018). State of the art of user packaging interaction (UPI). Packaging Technology and Science, 31(6), 401-419. DOI: 10.1002/pts.2363
4. Hellström, D., & Saghir, M. (2007). Packaging and logistics interactions in retail supply chains. Packaging Technology and Science, 20(3), 197-216. DOI: 10.1002/pts.754
